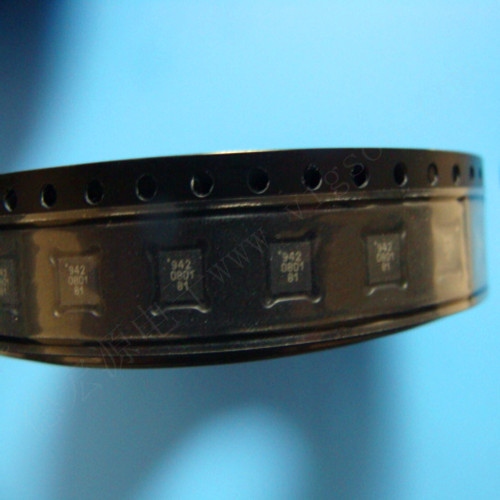

M/A-COM射頻微波開關(guān)MASWSS0202TR-3000
M/A-COM's MASWSS0202 is a broadband GaAs PHEMT MMIC SPDT switch in a lead-free 3 mm 12-lead PQFN package. The MASWSS0202 is ideally suited for applications where very small size and low cost are required. Typical applications are for WLAN IEEE 802.11a and 802.11b/g PC cards and access points. Other applications include cordless phones and base stations. Designed for high power, this SPDT switch maintains high linearity up to 6.0 GHz. The MASWSS0202 is fabricated using a 0.5 micron gate length GaAs PHEMT process. The process features full passivation for performance and reliability.
| 關(guān)鍵屬性 |
價(jià)值 |
| Technology |
MMIC |
| Frequency Range : Minimum Frequency |
0 MHz |
| Frequency Range : Maximum Frequency |
6000 MHz |
| Configuration (SPST, SPDT, ...) |
SPDT |
| Matching (Non-/Reflective) |
Non-Reflective |
| Insertion Loss |
0.75 dB |
| Isolation |
22 dB |
| P1dB |
35 dBm |
| Input IP3 |
51 dBm |
| Maximum Input Power |
34 dBm |
| Switching Time |
35 ns |
| Control Type (TTL, -V) |
10 µA, 3 V |
| Package Type |
PQFN | |
