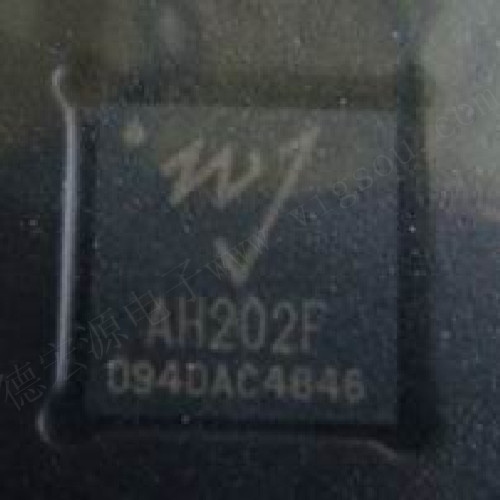

TRIQUINT射頻和微波驅(qū)動(dòng)放大器AH202F
The AH202 is a 1-Watt driver amplifier that offers excellent dynamic range in a low-cost, lead-free/RoHScompliant 6x6 mm 28-pin QFN surface-mount package. This device provides its optimum P1dB and OIP3 performance when biased at + 11 V; It can also be biased as low as +9 V for lower power applications. The backside metalization provides excellent thermal dissipation while allowing visible evidence of solder reflow across the bottom of the package on a SMT board. Superior thermal design allows the product an MTTF of over 100 years at a mounting temperature of +85º C. All devices are 100% RF & DC tested. The product is targeted for use as a driver amplifier for wireless infrastructure or CATV applications where high linearity and medium power is required.
| 關(guān)鍵屬性 |
價(jià)值 |
| Technology |
MMIC |
| Frequency Range : Minimum Frequency |
50 MHz |
| Frequency Range : Maximum Frequency |
2200 MHz |
| Gain |
17 dB |
| Gain Flatness |
|
| Noise Figure |
2.5 dB |
| P1dB |
30 dBm |
| Output IP3 |
47 dBm |
| Package Type |
QFN | |
