XC0900P-10S |

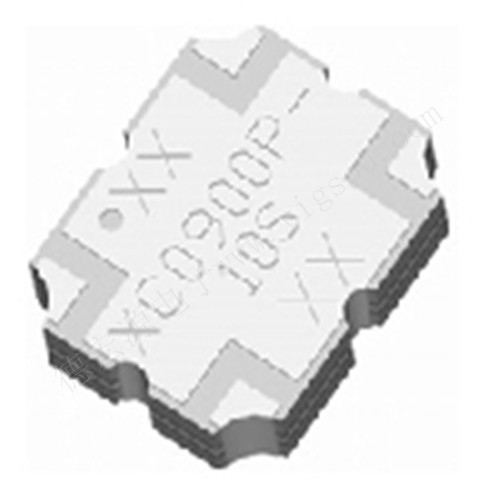

Anaren射頻定向耦合器XC0900P-10S
| The XC0900P-10S is a low profile, high performance 10dB directional coupler in a new easy to use, manufacturing friendly surface mount package. It is designed for AMPS band applications. The XC0900P-10S is designed particularly for power and frequency detection, as well as for power injection for example in feed-forward, where tightly controlled coupling and low insertion loss is required. It can be used in high power applications up to 55 Watts. Parts have been subjected to rigorous qualification testing and they are manufactured using materials with coefficients of thermal expansion (CTE) compatible with common substrates such as FR4, G-10, RF-35, RO4350, and polyimide. Produced with 6 of 6 RoHS compliant tin immersion. |
| |
| 關(guān)鍵屬性 |
價(jià)值 |
| Type |
|
| Frequency Range : Minimum Frequency |
|
| Frequency Range : Maximum Frequency |
|
| Coupling Value/Precision |
|
| Power |
|
| Dimensions |
|
| Directivity |
|
| Insertion Loss |
|
| VSWR (~:1) | |
|
