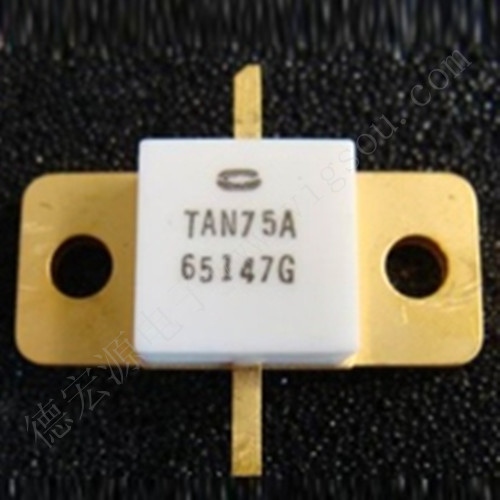

Microsemi射頻功率雙極晶體管TAN75A
The TAN75A is a high power COMMON BASE bipolar transistor. It is designed for pulsed systems in the frequency band 960-1215 MHz. The device has gold thin-film metallization and diffused ballasting for proven highest MTTF. The transistor includes input and output prematch for broadband capability. Low thermal resistance package reduces junction temperature, extends life.
| 關(guān)鍵屬性 |
價(jià)值 |
| Frequency Range : Minimum Frequency |
960 MHz |
| Frequency Range : Maximum Frequency |
1215 MHz |
| P1dB |
|
| Gain |
8.5 dB |
| Pout |
80 W |
| Test signal |
CW |
| Power Added Efficiency |
40 % |
| Supply Voltage |
50 VDC |
| Thermal Resistance |
0.6 °C/W |
| Package Type |
55AZ | |
