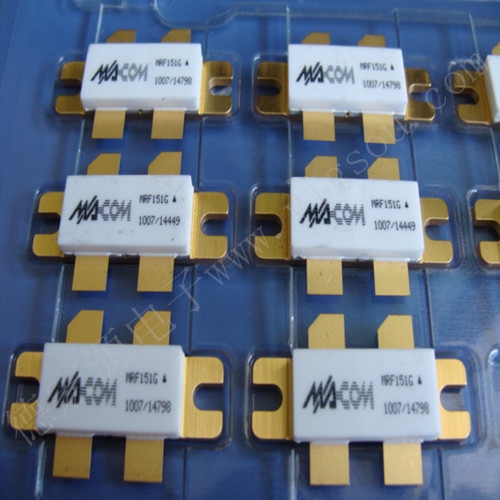

M/A-COM射頻功率晶體管MRF151G
Designed for broadband commercial and military applications at frequencies to 175 MHz. The high power, high gain and broadband performance of this device makes possible solid state transmitters for FM broadcast or TV channel frequency bands.
| 關(guān)鍵屬性 |
價(jià)值 |
| Frequency Range : Minimum Frequency |
2 MHz |
| Frequency Range : Maximum Frequency |
175 MHz |
| P1dB |
|
| Gain |
14 dB |
| Pout |
300 W |
| Test signal |
CW |
| Power Added Efficiency |
50 % |
| Supply Voltage |
50 VDC |
| Thermal Resistance |
0.35 °C/W |
| Package Type |
P-217 | |
